소프트웨어의 장점
Integrated Automated Workflow
Features a complete Z-type hoisting system that automatically feeds materials from the floor level to the weighing unit. This seamless integration significantly reduces manual labor and enables continuous, heavy-duty operation for bulky hardware.
High-Load Weighing System
Unlike standard micro-counters, the GY-C01 is engineered for 1kg–3kg heavy packaging. Its robust weighing sensor filters out vibrations to deliver consistent weight accuracy for large batches of metal parts.
Flexible Packaging Compatibility
Supports a wide range of film materials including Composite Membrane, Aluminum Foil, and Heat Sealing Film. This allows manufacturers to choose the right packaging durability for heavy metal parts, preventing bag punctures during transport.
Intuitive Control Interface
Equipped with a user-friendly touch screen and industrial PC control. Operators can easily set target weights and monitor production status, ensuring rapid changeover between different hardware types (e.g., switching from nails to large bolts).
사용 시나리오
자동차 패스너

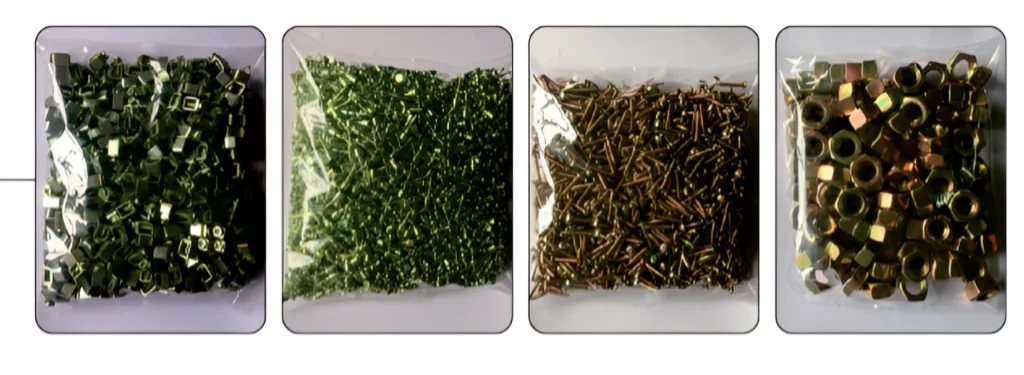

The GY-C01 is ideal for the bulk packaging of standard screws, bolts, and nuts, offering a high-capacity solution for assembly line supply or aftermarket distribution by ensuring consistent package weights for heavy metal fasteners.
자동차 스탬핑 부품
This machine efficiently handles the bagging of metal clips, brackets, and larger stamped components, providing a robust packaging solution for parts compatible with hopper feeding systems.
자동차 정밀 선삭 부품
It efficiently packages larger turned pins and shafts, streamlining the logistics process where bulk weight is the standard metric for quantity control rather than individual counting.
전자 금속 하드웨어
The system is perfectly suited for bagging larger chassis screws, heat sinks, and metal brackets used in desktop computers and appliances, providing a cost-effective method for packaging low-sensitivity hardware in bulk.
군용 정밀 패스너
The GY-C01 facilitates the logistical packaging of standard maintenance hardware such as nuts and bolts, ensuring rugged back-sealing suitable for the rapid heavy-duty bagging required by military supply depots.
제품 매개변수
| 주요 기술 매개변수 | |
|---|---|
| Production capacity | 200-300bag/h |
| Measuring range | 1KG-3KG |
| Bag making forms | Back to seal |
| Total power | 2.4 KW |
| Net weight | 750 kg |
| Power supply voltage | 380V 50Hz 220V 50-60Hz |
| Bag size | length(L):40-400mm; wide(W):100-300mm |
| Packaging materials | Composite membrane materials, aluminum foil, heat sealing film |
| Dimensions | 1.1(L)×3.0(W)×1.6(H)m |
