소프트웨어의 장점
High-Precision Computer Combined Scale
Unlike simple single-scale machines, the GY-C10 utilizes a multi-head combination weighing system. It instantly calculates the optimal combination from multiple weigh buckets to achieve the target weight with minimal giveaway. This is ideal for irregular hardware (like oddly shaped brackets) where single-piece weights vary.
Fully Integrated Z-Type Conveyor
The system features a dedicated Z-type bucket elevator that automatically transports bulk materials from the ground to the top weighing unit. This enclosed transport protects materials and ensures a continuous, automated supply line without manual lifting.
Broad Material Versatility
Designed to handle a vast range of particle sizes from 50g up to 5kg. Whether packaging small 3C screws or large automotive bolts, the machine adapts easily. It supports various film types (Composite, Aluminum Foil, PE) to suit different storage requirements.
End-of-Line Integration Capable
As shown in the system diagram, the GY-C10 can be integrated with downstream Box Packing Machines. This allows for a complete "Bag-in-Box" automation line, streamlining the packaging process from bulk sorting to final carton sealing.
사용 시나리오

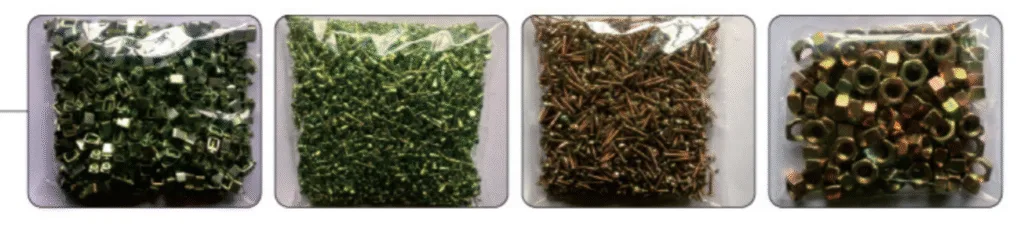

자동차 패스너
The GY-C10 efficiently handles the bulk packaging of mixed screws, bolts, and nuts. Its combination scale technology reduces weight errors significantly compared to standard weighing, making it ideal for aftermarket parts kits (50g-5kg).
Automotive Plastic Parts & Structural Components
Suitable for bagging injection-molded plastic clips and fasteners. The gentle handling of the combination weigher minimizes damage to plastic surfaces compared to vibratory bowl counters.
자동차 스탬핑 부품
Perfect for irregular metal stamped parts (e.g., brackets, washers). The system's algorithm compensates for weight variations in individual parts to deliver accurate total package weights.
전자 금속 하드웨어
Provides a flexible solution for packaging bulk computer screws, heat sinks, and metal standoffs. It offers a faster alternative to manual packing for low-value, high-volume hardware.
전자 플라스틱 부품
Efficiently bags bulk plastic keycaps, buttons, or insulative housings, ensuring consistent package weights for logistics and inventory control.
군용 정밀 패스너
Used for the robust packaging of standard logistics hardware. The machine's compatibility with aluminum foil and composite films ensures moisture-proof sealing, suitable for long-term storage of military spare parts.
제품 매개변수
| 주요 기술 매개변수 | |
|---|---|
| Production capacity | 10-20 bag/min |
| Measuring range | 50g-5000g |
| Bag making forms | Back to seal |
| Total power | 2.4 KW |
| Net weight | 500 kg |
| Power supply voltage | 380V 50Hz 220V 50-60Hz |
| Bag size | length(L):40-400mm; wide(W):100-300mm |
| Packaging materials | Composite membrane materials, aluminum foil, heat sealing film |
| Dimensions | 1.5(L)×1.5(W)×1.6(H)m |
