Máquina contadora óptica
UNITECHO revolutionizes automated packaging with our High-Precision Visual Counting Machine series, engineered to replace traditional weighing and mechanical counting methods. By integrating advanced line-scan CCD technology with intelligent algorithms, our systems deliver 99.9% counting accuracy, ensuring that every package contains the exact quantity required, regardless of material complexity.
Our portfolio caters to diverse production needs with two distinct high-performance series. The Multi-channel High Precision Series (D835/D850/D890)features a specialized 8-channel V-shaped design with dual-stage vibration plates, ensuring smooth separation and transport. This modular system is highly flexible, supporting expansion to 16, 24, or 32 channels to match production speeds. For mass production environments, the Z Series Combined High-Speed Counter (Z875)utilizes high-speed cameras capable of 10,000 scans per second, detecting particles as small as 0.3mm with a throughput of up to 5,000 pieces per minute.
Designed for versatility and ease of use, our counting solutions feature “One-Key” cleaning and rapid material changeover capabilities. Whether handling hardware fasteners (nuts, bolts), pharmaceutical products (tablets, capsules), food items (candy, gum), or precision plastic components, UNITECHO visual counters provide the reliability and speed essential for modern smart packaging lines.
Series de productos
Tecnología CCD avanzada de escaneado lineal y algoritmos inteligentes para un recuento preciso a velocidades inigualables. Capaz de procesar hasta 5.000 unidades por minuto, es adecuada para una amplia variedad de materiales, desde microcomponentes de 0,3 mm hasta alimentos y hardware.
✅ Procesamiento de alta velocidad de hasta 5.000 piezas/minuto
✅ Reconocimiento de precisión de piezas de tan solo 0,3 mm
✅ Limpieza con una sola tecla para un cambio rápido de material
Revolutionizing high-speed visual counting
Innovative multi-channel V-shaped design and dual-stage vibration feeding for reliable counting in an instant. Suitable for a wide variety of small components, ranging from robust hardware fasteners to delicate pharmaceutical pills and confectionery.
✅ Flexible V-shaped design for rapid material flow
✅ High precision for hardware, medical, and food products
✅ Scalable channels (16/24/32) to boost production efficiency
Utilizing AI vision and high-speed imaging, this machine automatically identifies and sorts materials or components by color, size, shape, or defect. It is ideal for enhancing production line efficiency and consistency in industries like electronics and automotive parts.
Comparación de productos

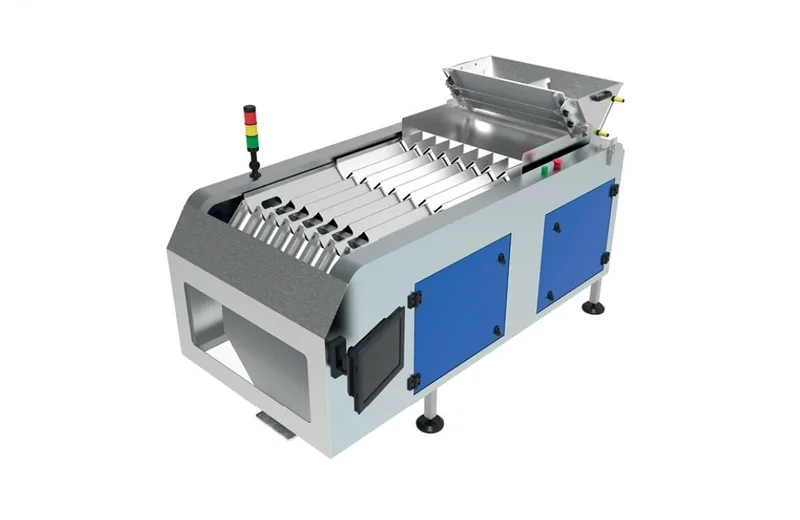

Multi-channel high-precision visual counting machine (D835/D850/D890)
| Modelo de equipo | D835/D850/D890 | Remarks |
|---|---|---|
| Eficacia del recuento | 60 bottles/min ① | |
| Error de recuento | ≤1‰ ② | |
| Overall Power | 0.9KW | |
| Fuente de alimentación | CA 220V±10% 50Hz±1% | |
| Presión del aire de trabajo | 0,5-0,8 MPa | |
| Consumo de aire | ≤1.0m³/min | |
| Overall Dimensions | 【D835】L1067mm×W540mm×H1090mm | Height includes feet |
| Overall Weight | 160kg |

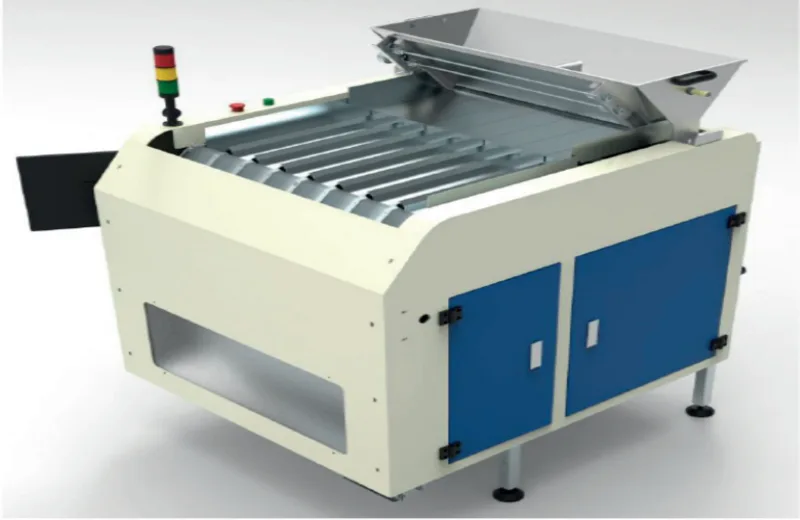

Combined high-speed visual counting machine (Z875)
| Modelo de equipo | Z875 |
|---|---|
| Eficacia del recuento | 5000 particles/min ① |
| Error de recuento | ≤1‰ ② |
| Overall Power | 2KW |
| Fuente de alimentación | CA 220V±10% 50Hz±1% |
| Presión del aire de trabajo | 0,5-0,8 MPa |
| Consumo de aire | ≤1.0m³/min |
| Overall Dimensions | L1333×An1070×Al1564mm |
| Overall Weight | 350 kg |
Clasificación de productos Ventajas
High-Precision Visual Recognition Technology
Utilizing imported high-speed line-scan CCD sensors with 2048 resolution and scanning speeds up to 10,000 times per second, our systems achieve theoretical accuracy rates of nearly 100%. The equipment is equipped with 6-million-pixel optical lenses capable of detecting and counting particles as small as 0.3mm, far surpassing traditional photoelectric or mechanical counting methods.
Versatile Multi-Industry Application
Designed to handle a vast array of materials, our counters are ideal for the hardware (nuts, bolts), pharmaceutical (pills, capsules), food (candy, gum), and plastic injection industries. The intelligent control system allows for the storage of unlimited material parameters, enabling operators to switch between different product types effortlessly without reprogramming.
Exceptional Speed & Throughput
Our machines are built for mass production. The Z-Series can process up to 5,000 pieces per minute, while the D-Series features a multi-channel V-shaped design (expandable to 16, 24, or 32 channels) to meet high-volume demands. This high efficiency significantly boosts packaging output while maintaining strict accuracy.
Cambio rápido y limpieza con una sola tecla
Efficiency extends to maintenance and downtime. The systems feature a "One-Key" fast cleaning function that quickly clears residual materials, making product changeovers incredibly fast. This design is user-friendly, allowing operators to switch materials and resume production with minimal interruption.
Intelligent Quality Monitoring & Safety
Beyond simple counting, our visual systems serve as quality gatekeepers. They feature intelligent alarm functions that automatically detect and alert for foreign matter, material defects, or packaging abnormalities. This ensures that only compliant products are packaged, protecting your brand reputation.
Flexible Operation & Smart Control
The systems offer multiple discharge modes—including foot pedal control, sensor-based release, and fully automatic discharge—to suit different production workflows. The touch-screen interface is intuitive and easy to master, reducing training time and reliance on specialized technical labor.
Industry Application Showcase
Industria del automóvil
Our equipment ensures the precise counting and packaging of essential automotive fasteners such as screws, nuts, and bolts. By replacing manual counting with high-speed visual recognition, we eliminate quantity errors in spare parts kits and assembly supply chains, significantly improving efficiency for automotive manufacturers.
Industria médica
We provide high-precision, non-contact counting solutions for pharmaceutical products like tablets and capsules. Our visual technology guarantees 100% accuracy and maintains strict hygiene standards by avoiding physical contact during the counting process, ensuring safety and compliance in medical packaging.
Industria electrónica
From terminals and connectors to small plastic gears, our systems enable the rapid and accurate counting of bulk electronic components. The advanced vision algorithms easily handle complex shapes and lightweight materials, ensuring exact quantities for high-volume consumer electronics production.
