Integrated Post-Pack Checkweigher

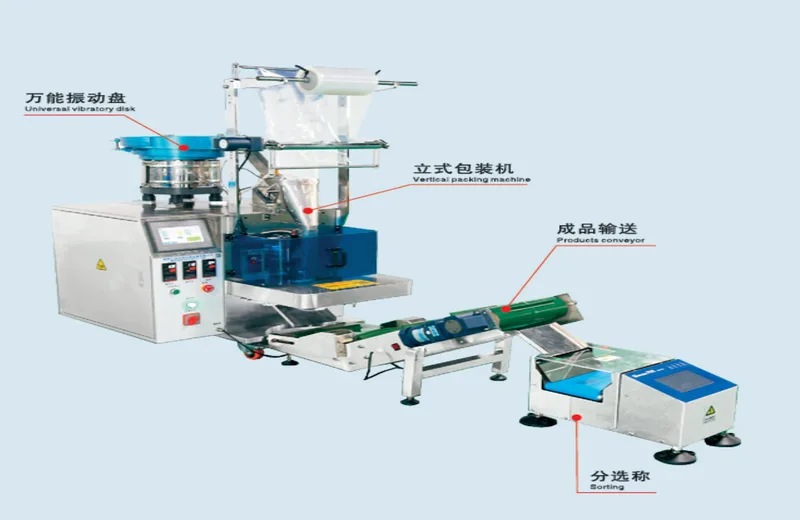

The standout feature of the GY-LS-01 is its built-in Sorting Scale (Checkweigher). After bagging, every single package is weighed instantly. If a bag is missing a screw or contains an extra one, the system automatically rejects it. This "Double Verification" loop guarantees 100% qualified output delivery.
Universal Vibratory Feeding System
Equipped with a customizable Universal Vibratory Disk, it effectively orients and separates granular hardware such as screws, nuts, and bolts. The vibration intensity allows for smooth feeding of metal parts without jamming.
Automated Vertical Packaging
Seamlessly integrates feeding, filling, sealing, and cutting. The machine creates robust Back Seal bags using various films (Composite, Aluminum Foil), providing strong protection for heavy metal hardware during transport.
Intelligent Touch Control
Features a user-friendly touch screen interface that visualizes production data, including bag count and weight statistics. Operators can easily adjust parameters for different hardware sizes, ensuring rapid changeover.
Escenarios de uso
Elementos de fijación para automoción
This machine is ideally suited for packaging standard automotive screws, nuts, and bolts, utilizing a vibratory bowl to efficiently arrange durable parts while the integrated checkweigher guarantees that no kit leaves the factory with missing pieces.
Piezas mecanizadas de precisión para automoción
The system is capable of accurately counting and bagging metal pins, shafts, and bushings, featuring a robust design that effectively handles the weight and high density of turned metal components.
Electrónica Metal Hardware
Providing a cost-effective solution for counting and bagging chassis screws, metal standoffs, and heat sinks, the GY-LS-01 offers significantly higher accuracy than simple weighing machines for these small, standard components.
Fijaciones militares de precisión
It is extensively used for packaging maintenance spare parts, such as replacement nuts and bolts, where the integrated checkweigher ensures logistics accuracy and prevents "short-shipping" errors in military supply chains.
Parámetros del producto
| Artículo | Especificación |
|---|---|
| Principales parámetros técnicos | |
| Capacidad de producción | 20-50 bolsas/min |
| Rango de medición | Autodeterminación |
| Formas de hacer bolsas | Volver al sello |
| Potencia total | 1,2 KW |
| Peso neto | 270 kg |
| Tensión de alimentación | 220 V 50-60 Hz |
| Tamaño de la bolsa | largo(L): 40-900mm; ancho(W): 100-300mm |
| Materiales de embalaje | Materiales compuestos de membrana, papel de aluminio, película termosellable |
| Dimensiones | 2,0(L) × 1,0(A) × 1,5(A)m |
