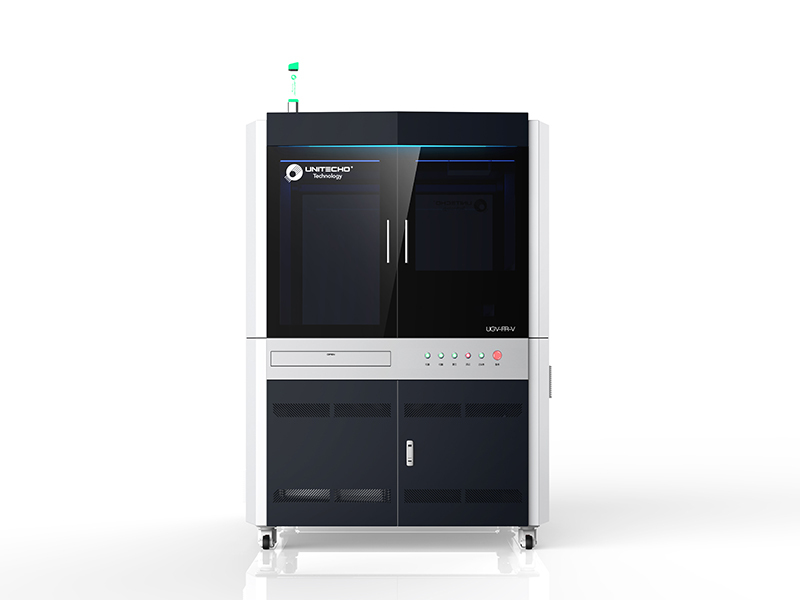

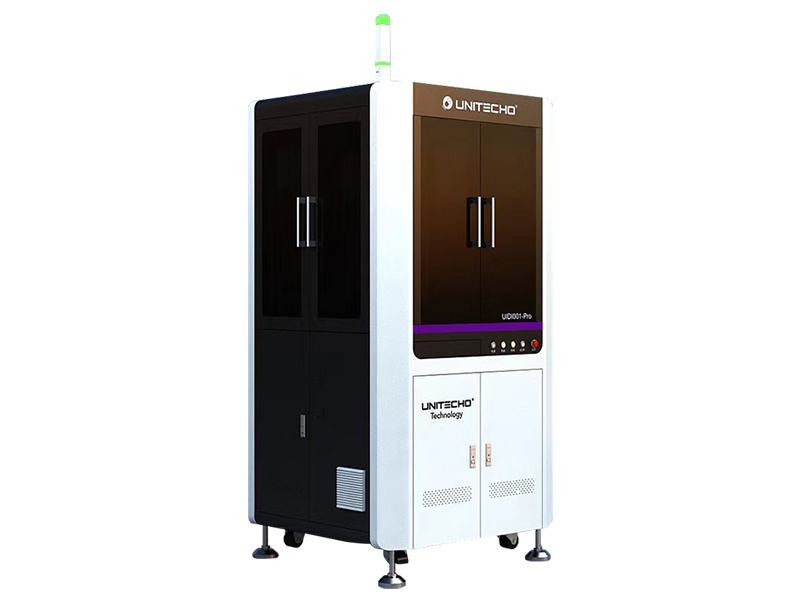

LTCC six-side appearance inspection equipment
1. The system features a high-speed feeding mechanism for rapid input.
2. Integrated is a high-performance motion control module ensuring precision.
3. A real-time data acquisition system captures information swiftly.
4. Coupled with a high-speed processing unit, it swiftly sorts and analyzes data.
- unitecho
- China
- 30days
- 1500
- Information
LTCC six-side appearance inspection equipment Specification
| Equipment Speed | ||||
|---|---|---|---|---|
| British system size | 0402 | 0603 | 0805 | 1206 |
| (Pcs/min)R | 5500 | 4000 | 2500 | 2000 |
| Equipment technical parameters table | |
|---|---|
| Detecting element | LTCC |
| Detection size | British system0402、0603、0805、1206 tec. |
| Test item | Electrode size, porcelain body size, damage, missing, dirt, discoloration, crack, abnormal Mark point, etc |
| Detection station | 6-side detection |
| Detection sorting | 4 bins（customizable）OK*1, NG*2, Undetected*1 |
| CCD | 0.4M Pixels, USB3.0 Vision, Color*6, Sony CMOS |
| Illuminant | High brightness dual color dual channel |
| Resolution | 2.3 μm pixels，3.45 μm pixels，4.6 μm pixels，6.9 μm pixels |
| Speed | Max 290fps |
The LTCC (Laminated Thin-film Chip) six-side appearance inspection equipment feature
High Resolution Imaging: Equipped with high-resolution cameras, this system captures minute details, detecting defects such as scratches, delamination, or misalignments on all六个侧面.
Automated Inspection: Utilizing advanced algorithms, the equipment streamlines the inspection process, reducing human error and enhancing efficiency in mass production lines.
Intelligent Sorting: Capable of real-time analysis, it classifies components based on inspection results, separating defective parts from good ones for efficient quality control.
Flexibility: Adaptable to various LTCC designs, the machine ensures consistent inspection across different package types, catering to diverse industry needs.
Environmental Control: Maintaining strict temperature and humidity controls, the system ensures consistent inspection conditions, minimizing environmental impact on test outcomes.
Data Integrity: Integrating with factory management systems, it provides detailed inspection reports and statistical analysis, fostering traceability and continuous improvement.
The LTCC six-side appearance inspection equipment delivers accurate, efficient, and reliable inspection capabilities, enabling manufacturers to maintain the highest standards in semiconductor manufacturing.
Defect Detection Case
LTCC six-side appearance inspection equipment
