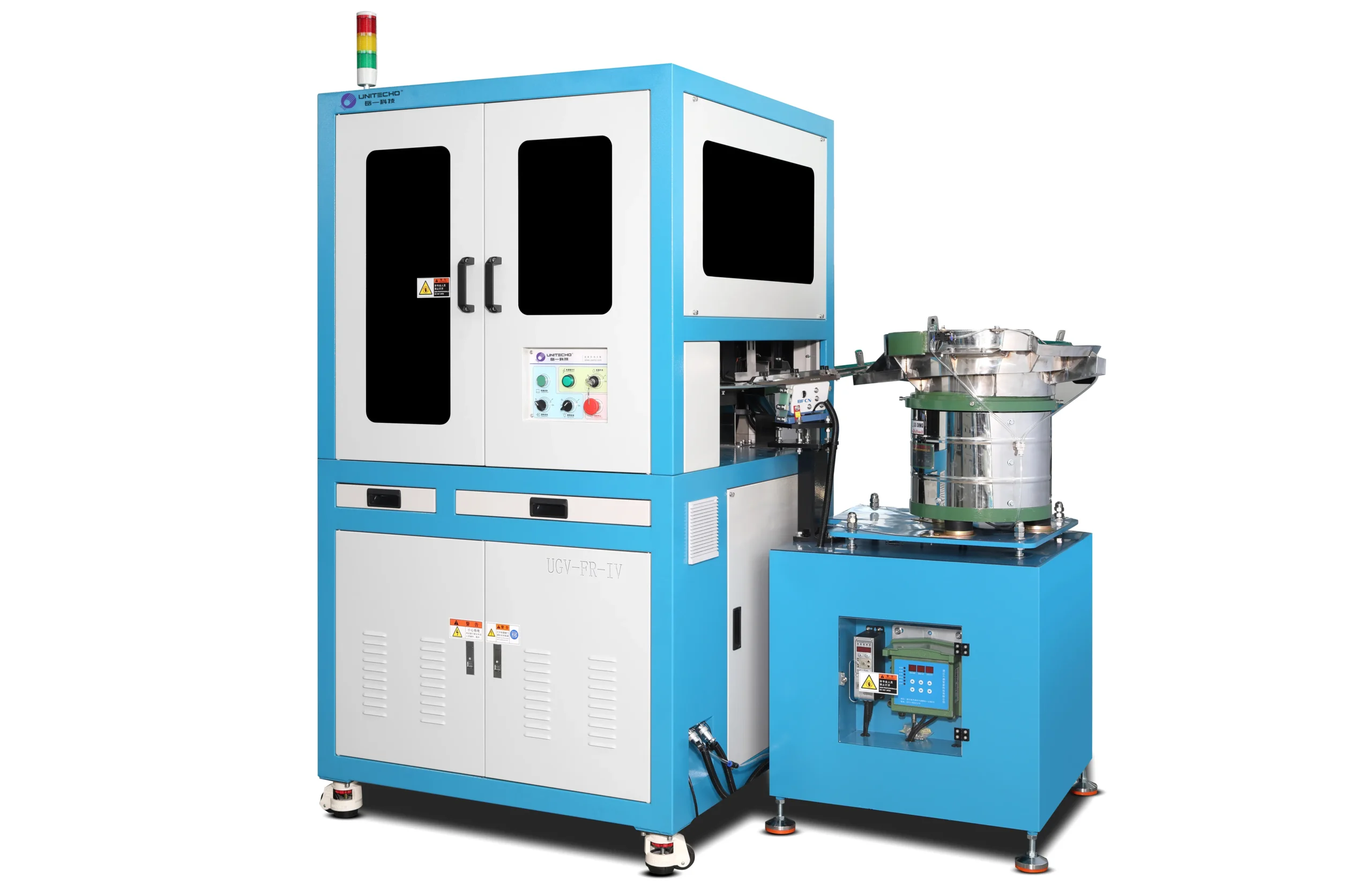

U-shaped groove Optical Sorting Machine
✅ Nearly 360° Comprehensive Inspection
✅ High Precision and Efficiency in Detection
Software Advantages
Specialized U-Slot Stabilization Technology
The UGV-E-VI features a unique glass U-slot design that centers and stabilizes cylindrical parts during transport, ensuring clear, distortion-free imaging of side surfaces.
Near 360° Comprehensive Inspection
Achieving nearly 360° coverage, the multi-camera system effectively detects surface defects and dimensional variances that standard single-view systems might miss.
Handling of Non-Standing & Rolling Parts
Specifically designed for components that cannot stand vertically or hang securely, the U-slot mechanism supports these parts naturally, ensuring precise optical alignment.
Rapid Model Setup
The integrated UIDG software addresses "cold start" issues by automatically generating virtual defect samples for AI training, enabling quick model switching and minimizing downtime.
AI-Driven Defect Recognition
Powered by UNITECHO’s proprietary AI ecosystem and NVIDIA computing, the system intelligently distinguishes between functional defects and cosmetic stains, reducing false reject rates.
Usage Scenarios
Automotive Precision Machined Parts
For precision-machined parts, this machine provides detailed inspection to guarantee the reliability and safety of automotive components.
Automotive Fasteners
The UGV-E-VI is excellent for inspecting automotive fasteners like pins and screws, ensuring they meet the stringent quality standards required in vehicle assembly.
Electronics Micro-precision Parts
For tiny components in 3C devices, this machine offers detailed inspection to guarantee the quality and performance of electronic gadgets.
Electronics Metal Hardware
The UGV-E-VI is suitable for inspecting small metal parts in consumer electronics, ensuring they meet the precise specifications required for 3C products.
Semiconductor Passive Components
In the semiconductor industry, the UGV-E-VI inspects passive components for defects, crucial for maintaining the reliability of electronic circuits.

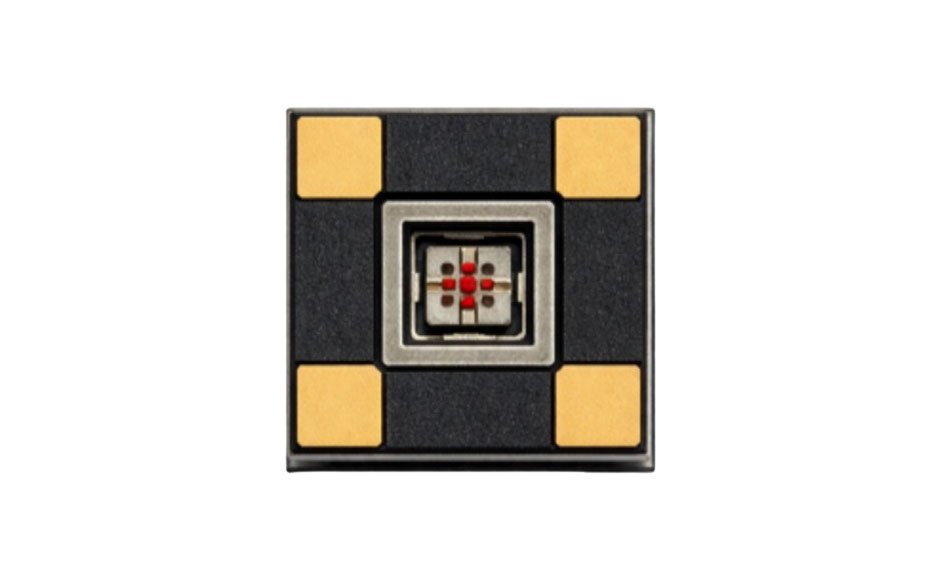

Semiconductor Interconnects
This machine also checks connection parts, ensuring they are free from defects that could affect semiconductor performance.
Medical Injection Molded Consumables
This machine also checks injection-molded medical consumables for defects, maintaining the high standards necessary for medical applications.
Medical Fasteners
In the medical field, the UGV-E-VI inspects small fasteners used in medical devices, ensuring they are free from defects that could compromise device functionality.
Product Parameters
| Item | UGV-D-VI | UGV-ER-VI | UGV-FR-VI | UGV-GR-VI |
|---|---|---|---|---|
| Model | UGV-D-VI | UGV-ER-VI | UGV-FR-VI | UGV-GR-VI |
| Detection disc diameter | 500mm | 600mm | 800mm | 1000mm |
| Equipment size | 928*1000*1900 | 1060*1060*1900 | 1280*1280*1980 | 1280*1480*1980 |
| Equipment weight | 750KG | 800KG | 900KG | 1000KG |
| Voltage | 220VAC (standard) | 220VAC (standard) | 220VAC (standard) | 220VAC (standard) |
| Frequency | 50HZ/60HZ | |||
| Power | 3KW | 4KW | ||
| Air pressure | 0.5-0.8Mpa | |||
| Applicable workpiece | Utilizing the high light transmittance of glass, workpieces that can be placed stably on the glass plate can be inspected. | |||
| Feeding method | Belt and rail conveyors | |||
| Feeding direction | clockwise/counterclockwise | |||
| Inspection items | Dimensional and appearance defects, such as diagonal edges, head size, stem, inner hole, pits, cracks, tooth damage, etc. | |||
| Maximum number of cameras | 4 Pcs | 8 Pcs | 12 Pcs | 16 Pcs |
| Speed | ±800Pcs/min | ±600Pcs/min | ±500Pcs/min | |
| Accuracy | ≥±0.002mm | |||
| Accessories can be added | It can be equipped with vertical feeding machines, climbing machines, storage bins, etc., and can be connected to packaging and baling machines. | |||
| Computer | Standard I7 industrial-grade computer (AI algorithm equipped with NVIDIA high computing power graphics card) | |||
| Software platform | All support UNITECHO's three self-developed software algorithm platforms: UZVISION vision platform + AI algorithm platform UIDI + AI defect generation software UIDG. | |||
