Software Advantages
Rapid Multi-Dimensional Measurement
The IVT-VISION software drastically reduces inspection time by measuring over 100 dimensions simultaneously in under 1 second. Unlike traditional methods, adding measurement points does not increase the cycle time, ensuring maximum throughput for high-volume production efficiency.
Intuitive Operation for Everyone
Designed with a user-friendly interface, the OMQ series allows any operator to achieve stable, consistent results with a simple click. Clear on-screen guidance simplifies the setup process, eliminating the need for specialized training or complex manual adjustments.
Automated Data Management & Reporting
Measurement data is automatically saved and organized for centralized management, ensuring full traceability and easy retrieval. With a single click, users can generate detailed inspection reports, streamlining post-measurement workflows and significantly improving administrative efficiency.
No Fixturing or Precise Positioning Required
The system utilizes advanced pattern recognition to automatically detect the shape, position, and orientation of the workpiece. This eliminates the need for time-consuming alignment or expensive fixtures—simply place the part on the stage, and the software handles the rest.
Elimination of Focus-Related Errors
Featuring a large depth-of-field telecentric lens and auto-focus capabilities, the system handles uneven surfaces and height variations with ease. This technology eliminates deviations caused by manual focus adjustments, ensuring consistent accuracy regardless of the operator's skill level.
Usage Scenarios
Automotive Precision Machined Parts
Our equipment verifies micron-level tolerances, surface finish, concentricity, and geometry on precision machined components such as shafts, pins, and connectors.
Automotive Fasteners
We inspect screws, bolts, and nuts for thread integrity, dimensional accuracy, surface defects, and anti-loosening performance to ensure reliable assembly and long-term safety.
3C Electronics Metal Hardware
We utilize specialized inspection systems to detect thread damage and dimensional deviations in fasteners and precision shafts, ensuring that every screw and nut meets the strict functional standards required for consumer electronics assembly.
Semiconductor Interconnects
We verify micron-level tolerances on pins and terminals, strictly measuring parameters like pitch, coplanarity, and geometric accuracy to prevent connectivity failures.
Medical Fasteners

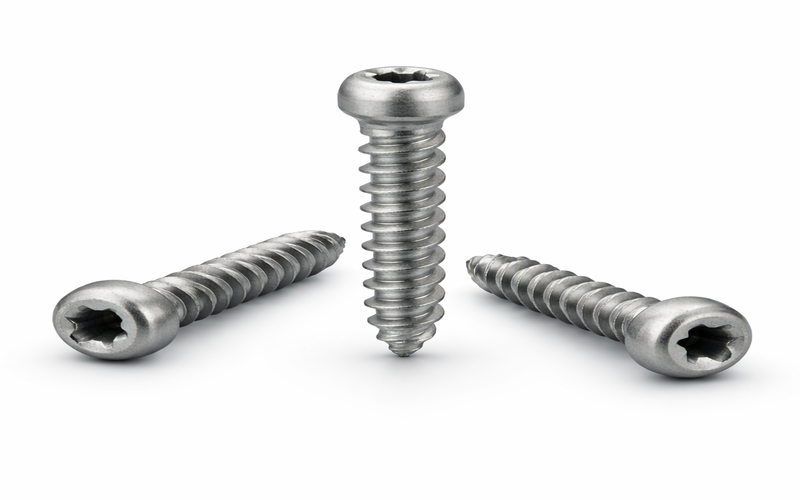

We perform micron-level dimensional measurement on critical fasteners like titanium bone nails and surgical screws. Utilizing Horizontal Measuring Instruments, we verify thread integrity and axial geometry to strict medical standards.
Ammunition Components
Our systems verify the geometric concentricity and surface sealing of casings, warheads, and primers. We employ horizontal measurement for long projectiles to ensure airtightness and ballistic stability.
Military Precision Fasteners
We utilize optical measurement to verify Mil-Spec tolerances and surface integrity on aviation screws and bolts, ensuring zero-error kitting for critical maintenance and assembly.
Product Parameters
| Item | OMQ100W | OMQ120W | OMQ190W |
|---|---|---|---|
| Model | OMQ100W | OMQ120W | OMQ190W |
| Measuring Stroke (mm) | 82×55 | 120×80 | 190×126 |
| R-axis Movement Mode | Automatic | Automatic | Automatic |
| Optical Lens | Double Telecentric Optical Lens | Double Telecentric Optical Lens | Double Telecentric Optical Lens |
| Image Sensor (Pixels) | 20 Million | 20 Million | 20 Million |
| Measurement Accuracy (μm) | ±(2.5+L/50) | ±(2.5+L/50) | ±(2.5+L/50) |
| Repeatability (μm) | ±1.5 | ±1.5 | ±1.5 |
| Light Source | 256-level Programmable Light Source; Contour Light: Telecentric Parallel Light Source | 256-level Programmable Light Source; Contour Light: Telecentric Parallel Light Source | 256-level Programmable Light Source; Contour Light: Telecentric Parallel Light Source |
| Image Processing | IVT Advanced Image Analysis Method, 256 Gray Levels, 20:1 Sub-pixel Processing Technology | IVT Advanced Image Analysis Method, 256 Gray Levels, 20:1 Sub-pixel Processing Technology | IVT Advanced Image Analysis Method, 256 Gray Levels, 20:1 Sub-pixel Processing Technology |
| Software | IVT-VISION | IVT-VISION | IVT-VISION |
| Minimum Display Unit (mm) | 0.00001 | 0.00001 | 0.00001 |
| Z-axis Movement Range (mm) | 45 | 30 | —— |
| Overall Dimensions (mm) | 900×200×460 | 1050×300×560 | 1700×680×130 |
| Weight (KG) | 30 | 40 | 385 |
| Load Capacity (KG) | 5 | 8 | 10 |
| Working Environment | Power Supply: 220V/50Hz; Vibration: <0.0002mm/s, <15Hz; Temperature: 22°C ±5°C; Humidity: 20~80% | Power Supply: 220V/50Hz; Vibration: <0.0002mm/s, <15Hz; Temperature: 22°C ±5°C; Humidity: 20~80% | Power Supply: 220V/50Hz; Vibration: <0.0002mm/s, <15Hz; Temperature: 22°C ±5°C; Humidity: 20~80% |
| Optional Accessories | 1. Customization of special models and software functions is available; 2. Optional fixed workbench | 1. Customization of special models and software functions is available; 2. Optional fixed workbench | 1. Customization of special models and software functions is available; 2. Optional fixed workbench |
