Double Glass Disc Optical Sorting Machine

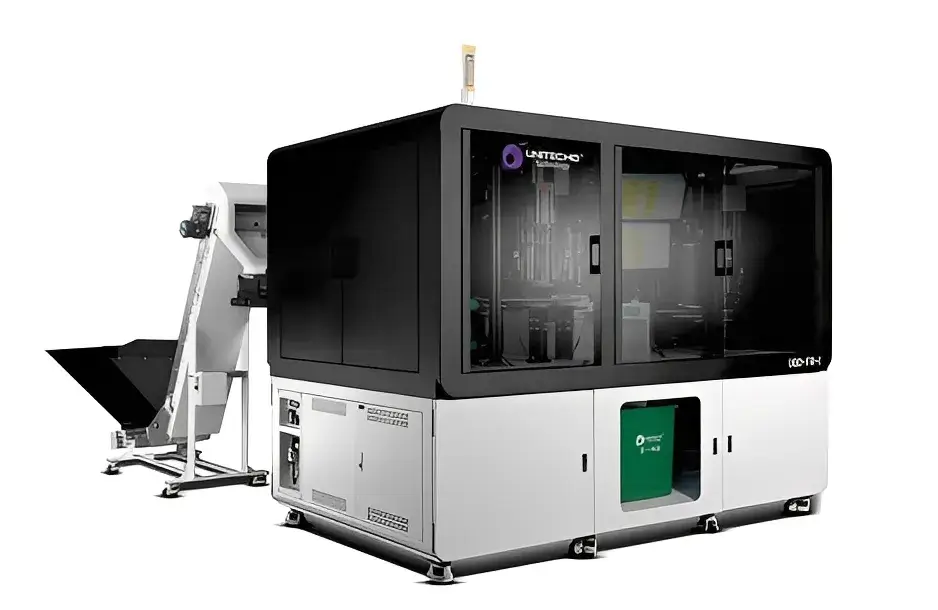

The UGO-Double Glass Disc Screening Machine Series is the top solution for ultra-high-volume, high-precision inspection applications of rubber seals and similar components. Different in concept, this innovative series features a dual, independent glass disc available at 600mm (UGO-FB-I) and 800mm (UGO-FB-II) diameters equipped with up to 24 high-resolution cameras that multiply throughput over standard single-disc machines. Integrated with the UIDI deep learning platform software UIDG defect generation and slope climbing feeding, UGO delivers full, accurate, and efficient AI visual sorting of defects plus dimensional differences in O-rings, oil seal, and gasket.
Product Series
Ultimate Dual-Platform Performance for Maximum Production Scale

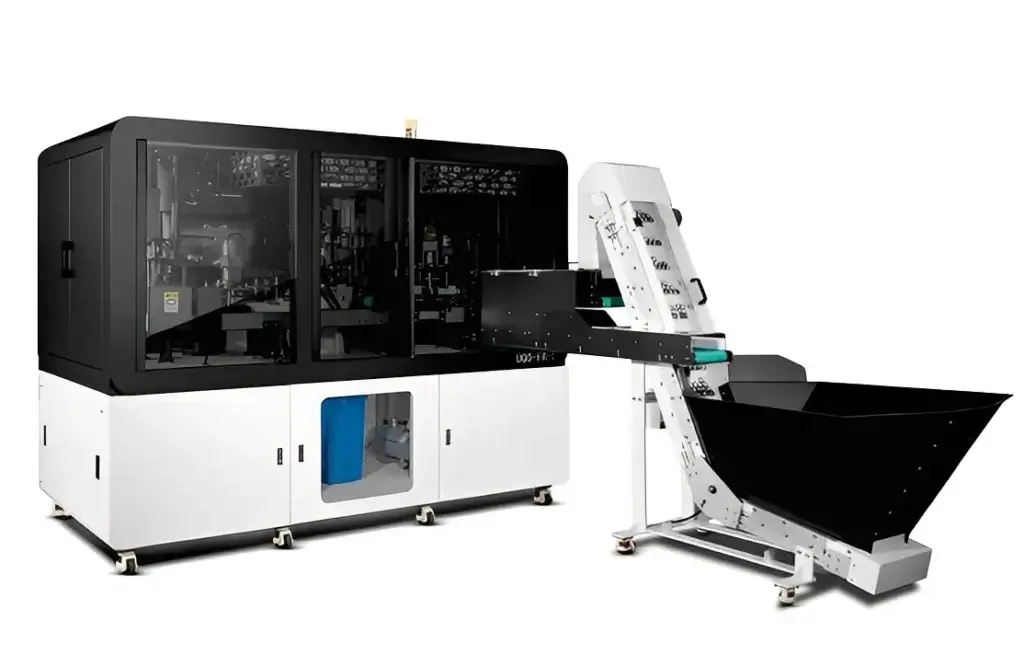

The UGO-FB-II represents the flagship of the double glass disc series, featuring two massive 800mm detection platforms operating simultaneously with an advanced 24-camera vision system. Engineered for the highest-volume rubber seal manufacturing environments, this premium dual-platform architecture delivers unmatched production capacity while maintaining exceptional inspection precision. Integrating UIDI AI deep learning with slope climbing feeding and packaging automation, the UGO-FB-II provides comprehensive defect detection on O-rings, gaskets, and oil seals, making it the ultimate solution for tier-1 automotive and pharmaceutical manufacturers demanding maximum throughput without quality compromise.
✅ Dual 800mm Large-Format Glass Discs for maximum production capacity
✅ 24 High-Resolution Cameras with 360° prism module coverage
✅ UIDI + UIDG AI Platforms for autonomous model training and rapid deployment
✅ Heavy-Duty 1000KG Architecture for industrial-scale stability
The UGO-Double Glass Disc Screening Machine Series is the top solution for ultra-high-volume, high-precision inspection applications of rubber seals and similar components. Different in concept, this innovative series features a dual, independent glass disc available at 600mm (UGO-FB-I) and 800mm (UGO-FB-II) diameters equipped with up to 24 high-resolution cameras that multiply throughput over standard single-disc machines. Integrated with the UIDI deep learning platform software UIDG defect generation and slope climbing feeding, UGO delivers full, accurate, and efficient AI visual sorting of defects plus dimensional differences in O-rings, oil seal, and gasket.

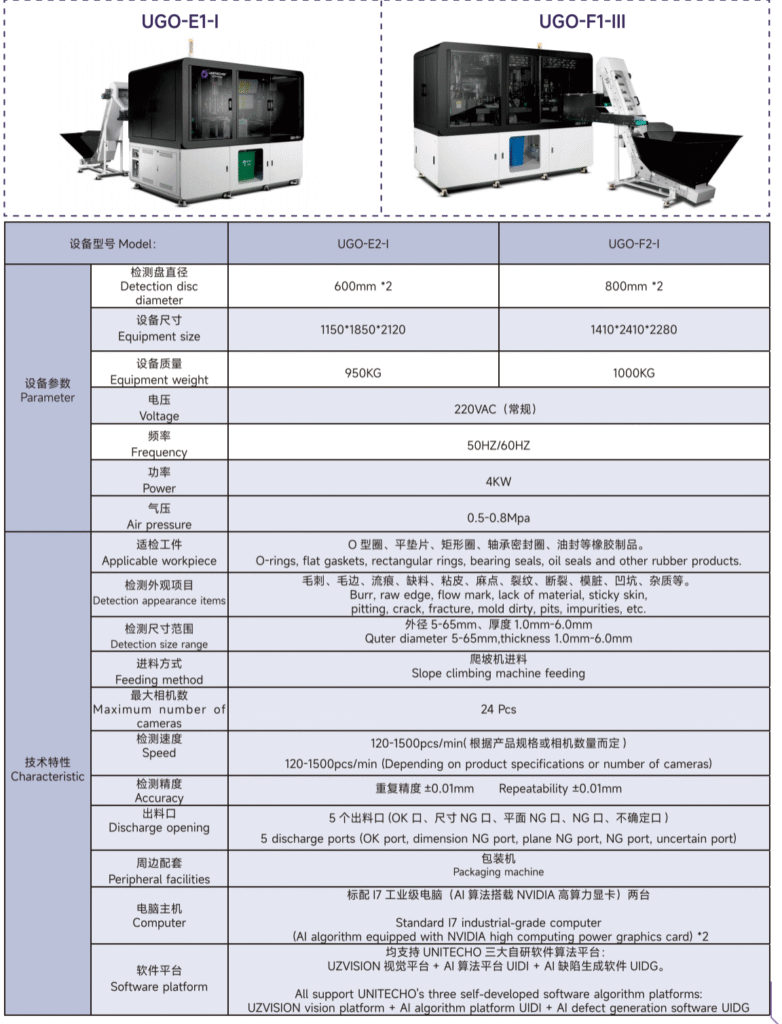

Product Comparison
Product Classification Advantages
Dual Platform Architecture for Doubled Throughput
The series pioneers a dual, independent glass disc detection architecture, significantly boosting overall production efficiency to twice that of conventional single-disc screeners. Both the 600mm and 800mm models are designed to meet the continuous, high-efficiency inspection needs of ultra-high-volume component manufacturing in the automotive and medical sectors.
AI Deep Learning for Rapid Model Deployment
The integrated UIDI AI platform empowers customers to autonomously train and iterate models even with limited samples, drastically reducing the dependency on massive, expert-labeled datasets. By combining this with the UIDG defect generation software, the system rapidly creates synthetic defect samples for model optimization, substantially accelerating new product introduction and model construction time.
24-Camera System Ensures 360° Comprehensive Detection
The equipment employs up to 24 high-resolution industrial cameras and advanced optical systems, ensuring high-quality, high-coverage image acquisition across both platforms. This multi-camera setup, especially with the optional 360° prism detection module, enables comprehensive, all-around defect capture for complex and irregular parts like O-rings and oil seals.
High-Stability Industrial Design Guarantees Precision
A heavy-duty, industrial-grade frame (up to 1000KG for the UGO-FB-II) is employed to effectively absorb vibrations during high-speed operation, guaranteeing long-term stability. The system delivers exceptional detection precision (Repeatability ± 0.01 mm), providing reliable quality assurance and data support for ultra-high-volume production environments.
Industry Applications
